Aluminum Curtain Wall

Product Technical Parameters:
Steel frame parameters:

Steel thickness: 3.0mm -4.0mm (adjustable according to project requirements)

Steel type: High quality carbon structural steel or galvanized steel, with high strength and corrosion resistance.

Surface treatment: Sandblasting, painting or hot-dip galvanizing can be carried out to enhance anti-corrosion performance.

Aluminum panel decorative parameters:

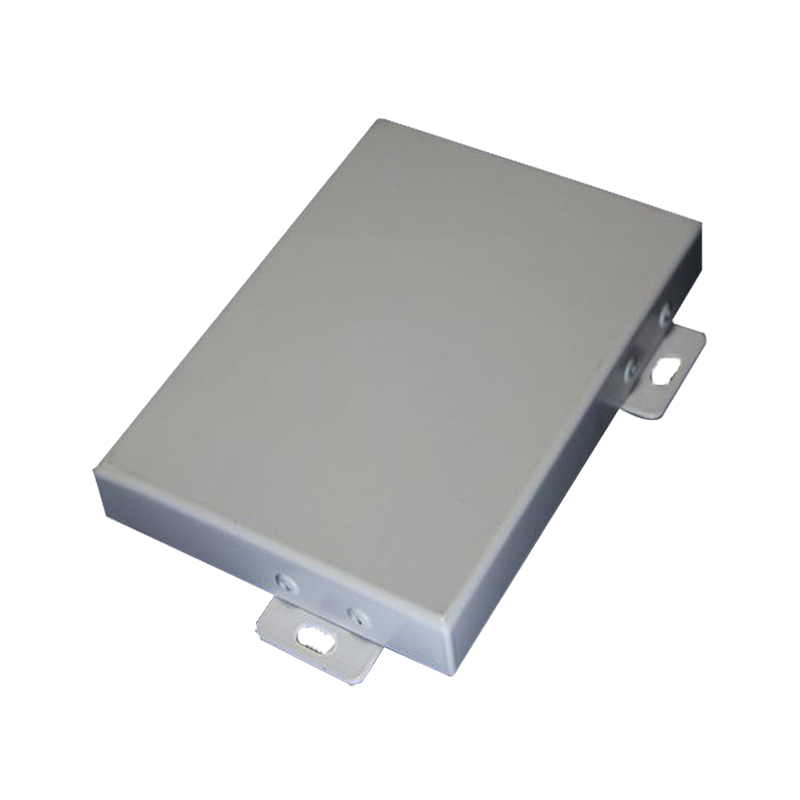

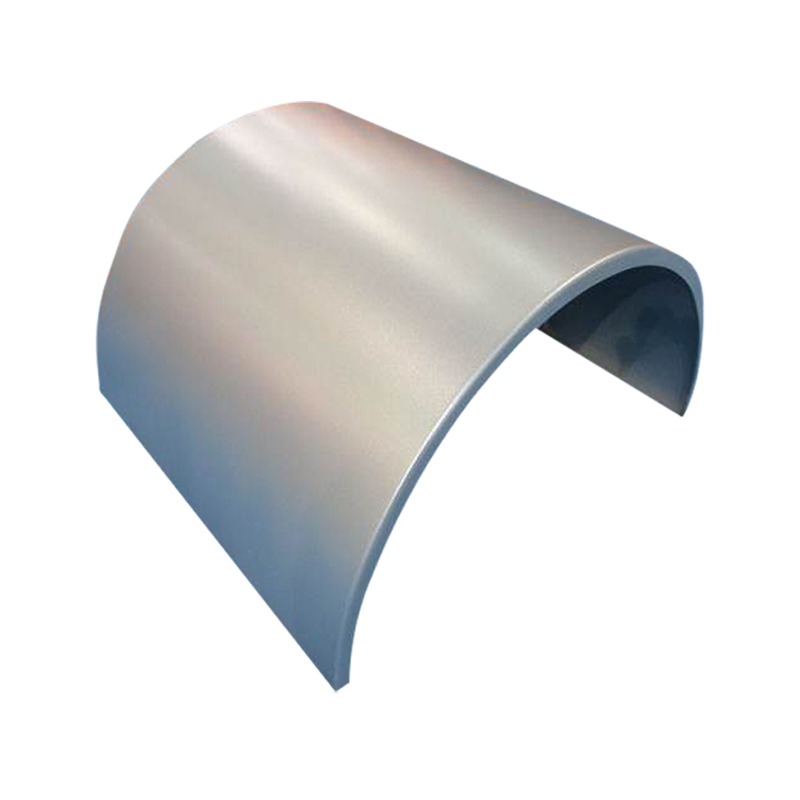

Aluminum plate thickness: 2.0mm/2.5mm/3.0mm (can be selected according to customer needs)

Aluminum plate material: High quality aluminum alloy, characterized by lightweight, corrosion resistance, and easy processing.

Surface treatment: Fluorocarbon spraying, powder spraying or anodizing treatment, color options available, strong weather resistance.

Curtain Wall Structure:

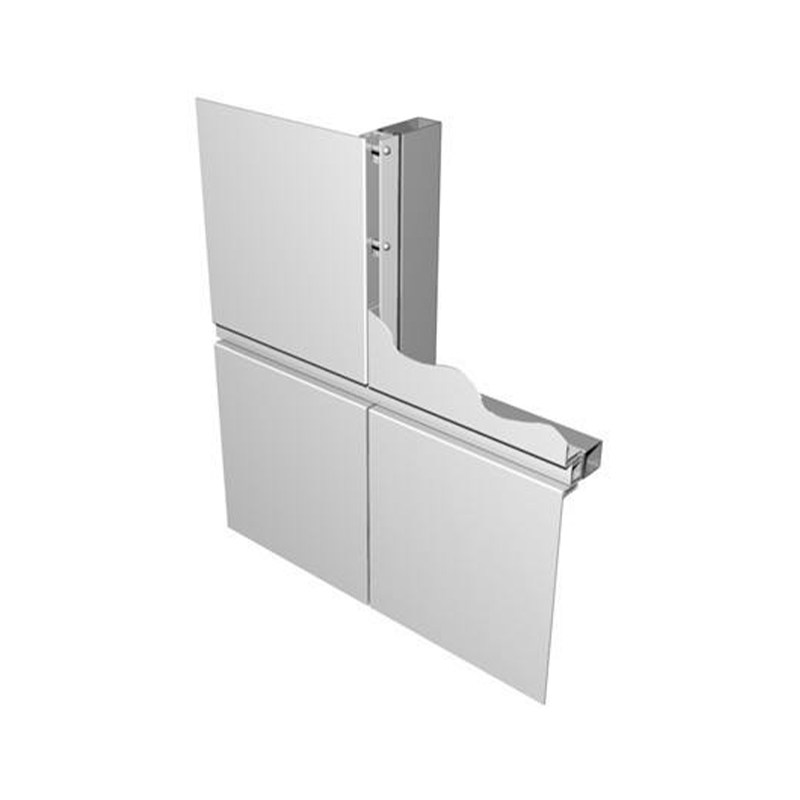

Steel frame structure: provides stable support and is suitable for large-area curtain wall systems.

Aluminum panel finish: The appearance is smooth and beautiful, and can be customized with multiple colors and surface effects.

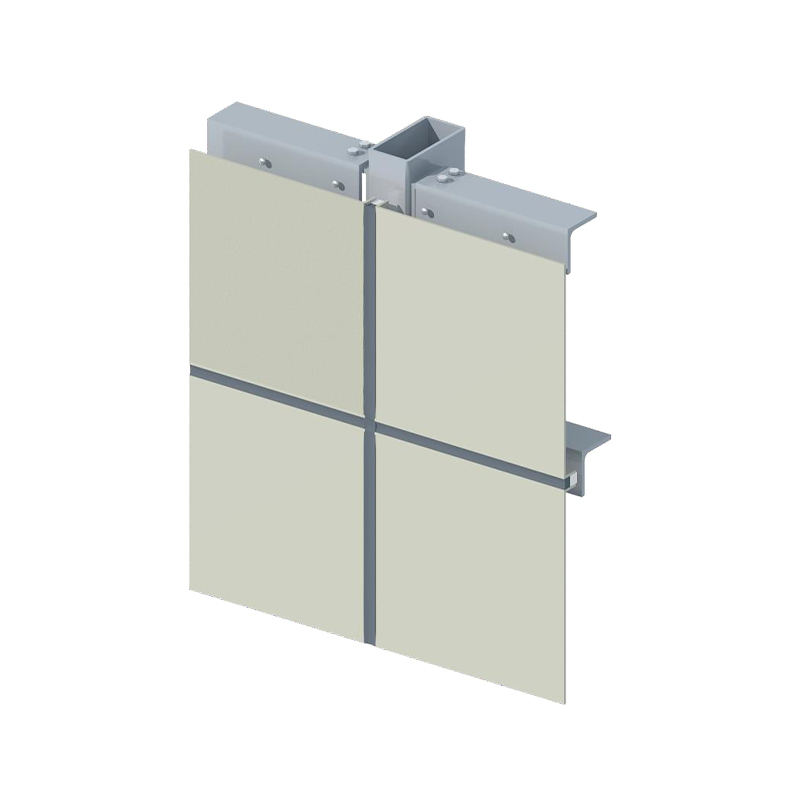

Installation method: The aluminum plate is fixed to the steel frame by mechanical fixation or adhesive bonding.

Thermal insulation and sound insulation performance:

Thermal insulation materials (such as rock wool or polyurethane) can be filled between the steel frame and aluminum plate to enhance the insulation and sound insulation performance of the curtain wall.

The back of the aluminum plate can be reinforced with ribs to enhance overall rigidity and wind pressure resistance.

Wind resistance performance:

According to engineering requirements, different levels of wind resistance can be designed to ensure the safety of the curtain wall in strong wind environments.

Sealing performance:

Using high-quality sealing strips and weather resistant adhesive to ensure the airtightness and water tightness of the curtain wall.

Waterproof design is adopted at the joint to effectively prevent rainwater infiltration.

Packaging method:

Wooden crate packaging: ensures that the product is not damaged during transportation and is suitable for long-distance transportation.

Installation method:

We can provide installation guidance or installation services according to customer needs.

The installation process must strictly follow the curtain wall construction specifications to ensure safety and stability.

Applicable scenarios:

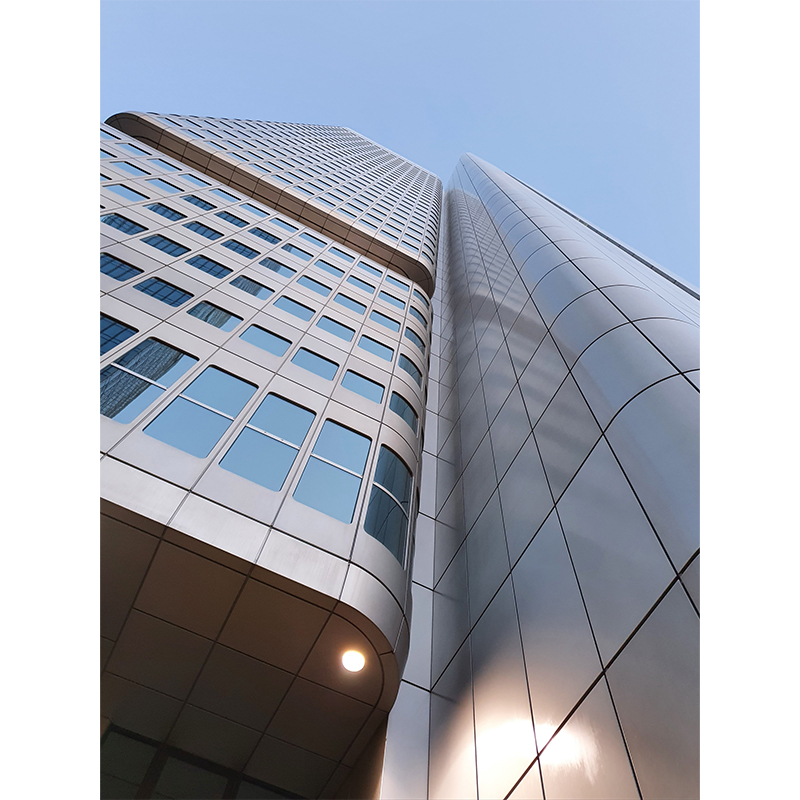

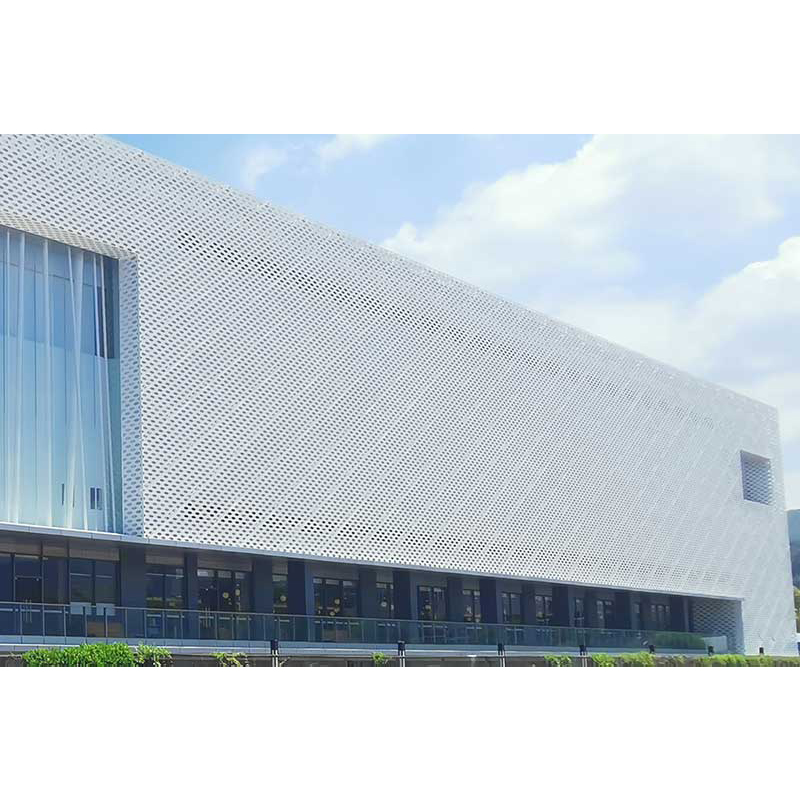

Suitable for large-scale construction projects such as high-rise buildings, commercial complexes, office buildings, airports, and stations.

Product advantages:
Stable structure: The steel frame provides high-strength support, suitable for large-scale curtain wall applications.

Beautiful and durable: The aluminum panel finish has a smooth appearance, rich colors, strong weather resistance, and is suitable for modern architectural styles.

Customized service: Customization can be made according to the drawings provided by customers to meet different building needs.

Lightweight and High Strength: Aluminum plates are lightweight, have high strength, and are easy to process and install.

Energy saving and environmental protection: can be filled with insulation materials to improve the insulation and sound insulation performance of the curtain wall, and reduce energy consumption.

matters needing attention:
Please provide detailed drawings and dimensional requirements so that we can proceed with customized production.

The minimum order quantity is 200 square meters. Any quantity lower than this will require further negotiation.

During transportation, wooden box packaging can effectively protect the product, but care should still be taken to handle it gently and avoid collisions.

The installation process needs to be carried out by a professional team to ensure the safety and stability of the curtain wall.
