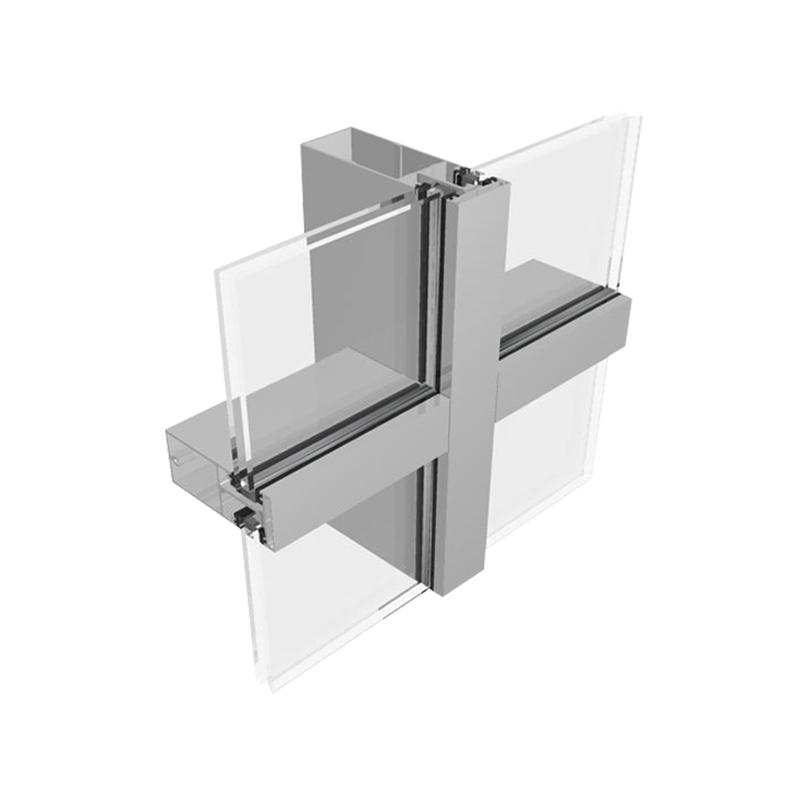

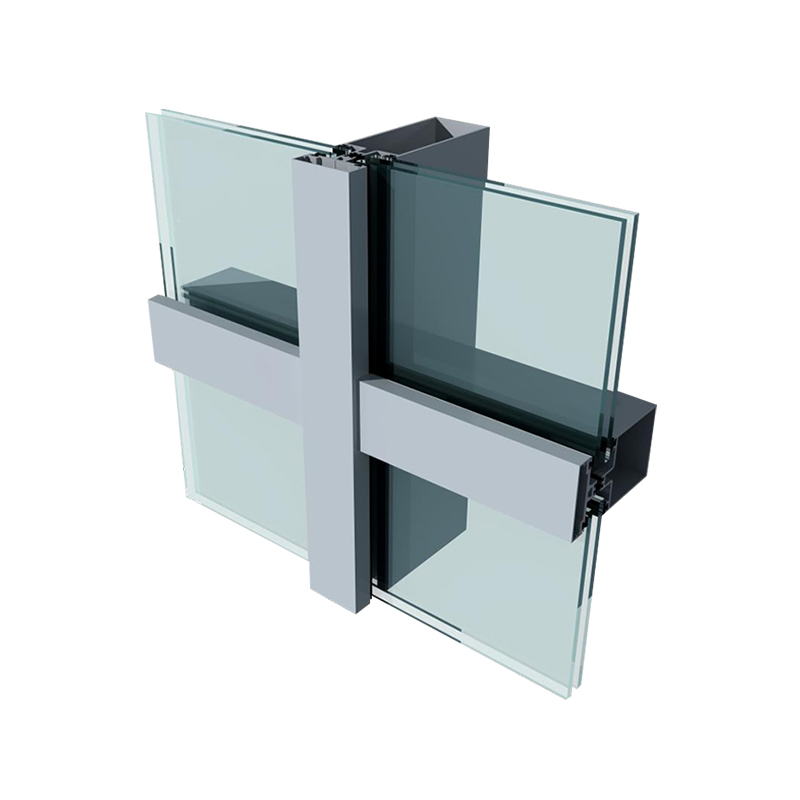

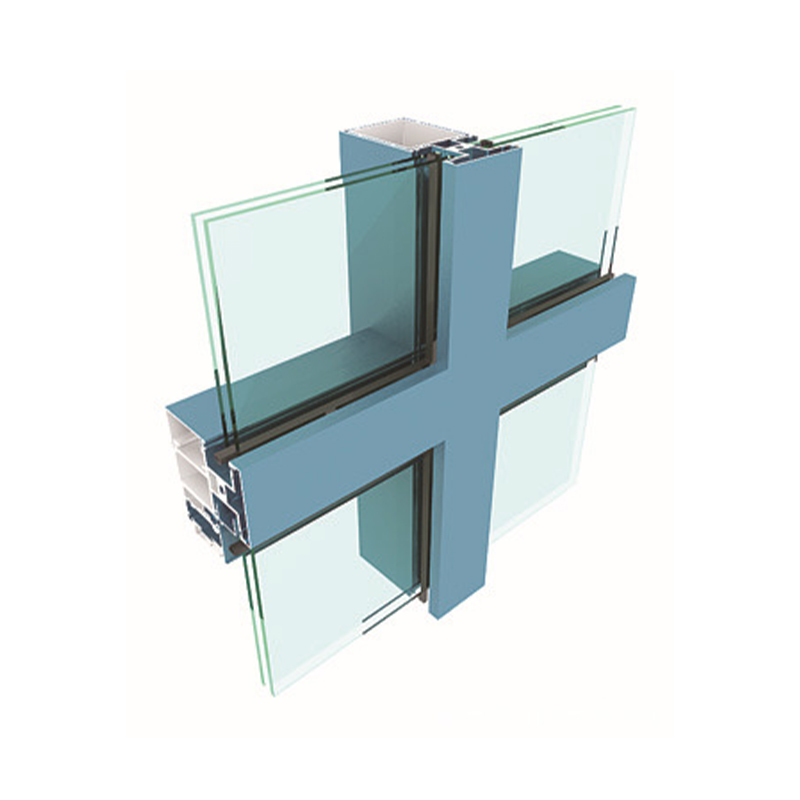

Exposed Frame Curtain Wall

Product Technical Parameters:
Profile thickness:

Aluminum profile thickness: 3.0mm

Curtain Wall Structure:

Clear frame design: The frame is exposed, the structure is stable, and the appearance is simple and atmospheric.

Suitable for large-scale construction projects such as high-rise buildings, commercial complexes, and office buildings.

Glass configuration:

Glass type: Hollow double-layer tempered glass

Glass structure: 6mm Low-E+12A (argon gas layer)+6mm tempered glass

Low-E glass: Low emissivity coated glass with excellent thermal insulation and thermal retention properties.

Argon layer: filled with 12mm argon gas to further enhance insulation and sound insulation effects.

Tempered glass: 6mm tempered glass, with high safety and impact resistance.

Surface treatment:

Surface treatment of aluminum profiles: Powder coating, anodizing or electrophoretic coating can be carried out according to customer needs, and colors are optional.

Hardware accessories:

Using high-quality hardware accessories to ensure the stability and durability of the curtain wall.

Customers can choose different brands and models of hardware accessories according to their needs.

Sealing performance:

Using high-quality sealing strips and weather resistant adhesive to ensure the airtightness and water tightness of the curtain wall.

Multi layer sealing design effectively prevents the infiltration of air and water.

Wind resistance performance:

According to engineering requirements, different levels of wind resistance can be designed to ensure the safety of the curtain wall in strong wind environments.

Thermal insulation and sound insulation performance:

Broken bridge design (if applicable) and Low-E insulated glass configuration effectively enhance the insulation and sound insulation performance of the curtain wall.

Packaging method:

Wooden crate packaging: ensures that the product is not damaged during transportation and is suitable for long-distance transportation.

Installation method:

We can provide installation guidance or installation services according to customer needs.

The installation process must strictly follow the curtain wall construction specifications to ensure safety and stability.

Applicable scenarios:

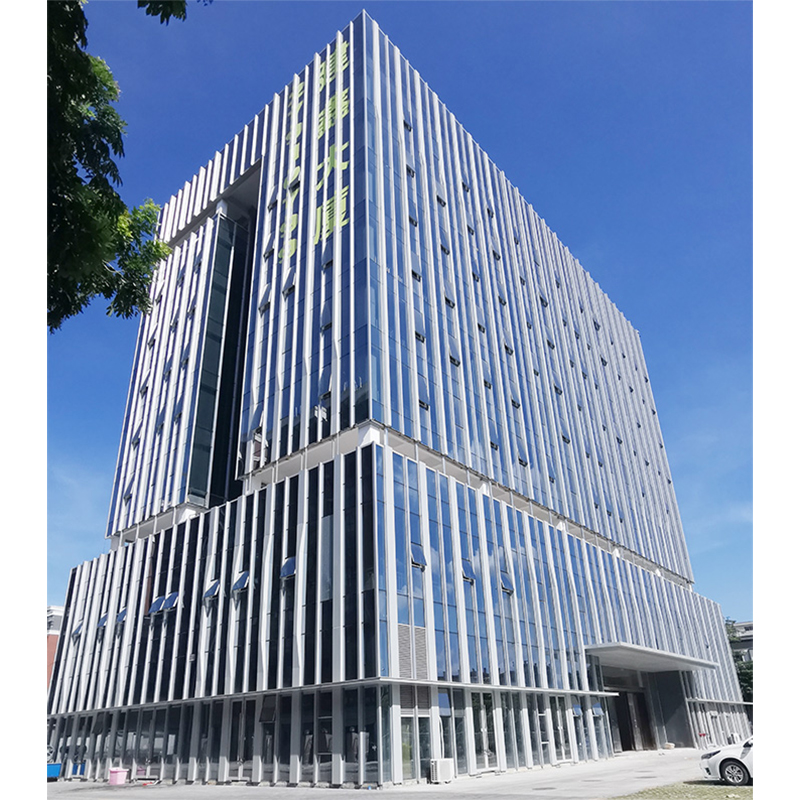

Suitable for large-scale construction projects such as high-rise buildings, commercial complexes, office buildings, hotels, etc.

Product advantages:
Stable structure: With a clear frame design and exposed frame, the structure is stable and suitable for large-scale curtain wall applications.

Efficient and energy-saving: Low-E glass and argon gas layer design enhance insulation and sound insulation performance, reducing energy consumption.

Customized service: Customization can be made according to the drawings provided by customers to meet different building needs.

High quality materials: Using high-quality aluminum profiles and tempered glass to ensure the durability and safety of the product.

Beautiful and atmospheric: The clear frame design has a simple appearance, suitable for modern architectural styles.

matters needing attention:
Please provide detailed drawings and dimensional requirements so that we can proceed with customized production.

The minimum order quantity is 200 square meters. Any quantity lower than this will require further negotiation.

During transportation, wooden box packaging can effectively protect the product, but care should still be taken to handle it gently and avoid collisions.

The installation process needs to be carried out by a professional team to ensure the safety and stability of the curtain wall.
